Front Door Latch for Hearthstone Wood Stoves
Part # 90-73212

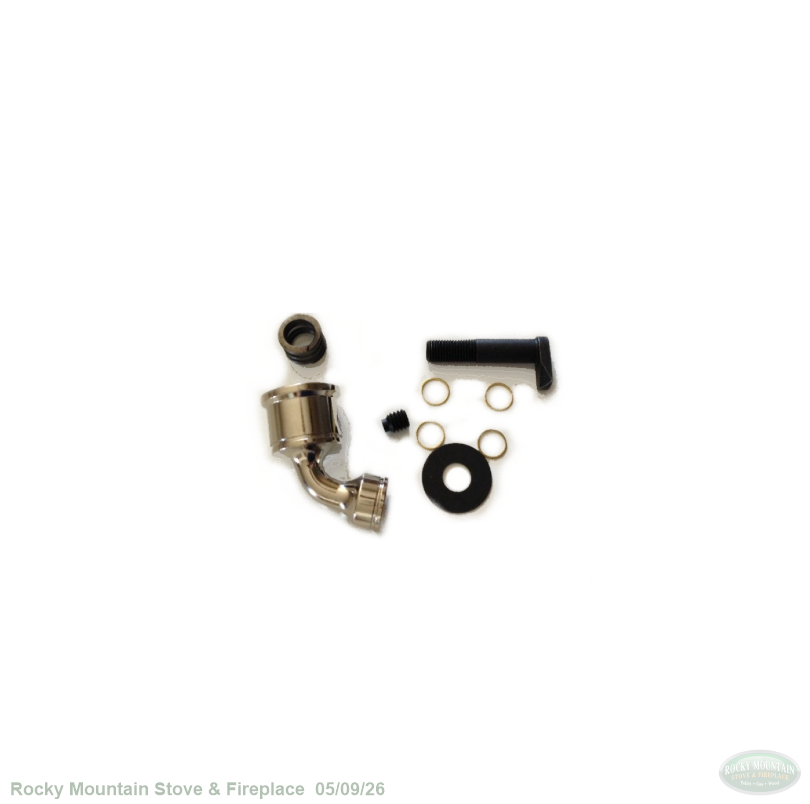

Front Door Latch Assembly designed for use with:
Heritage Wood Stove 8021
Castleton Wood Stove 8030
Tribute Wood Stove 8040
Set Screw 4500-2976
(4) Spacer 4700-0790
Handle Crank 5010-081
Front Door Latch 5021-022
1) Remove and discard the old door latch assembly by loosening the setscrew with the allen wrench.
2) Install the new latch assembly as shown below. Start out with two brass spacer washers on the inside of the door. Thread the outer chrome crank (with the coil and large washer placed on the latch shaft as shown) onto the latch. Turn the crank until there is approximately 1/8” between the crank and the door.
3) Align the setscrew hole in the crank with the groove in the latch shaft and insert and tighten the set screw (the half dog tab will fit into the groove on the latch).
4) Check door seals using the "dollar bill test." Close the door on a dollar bill. If the bill pulls out without any resistance, then your stove’s door is not sealing properly. Add or remove spacers to adjust gasket pressure.
Replaces older door handles # 90-73210 and 90-73211
Does NOT include 90-71100 Wood Handle kit, HearthStone Wooden Handle
