Jotul Wood Stove and Insert Universal Gasket Kit

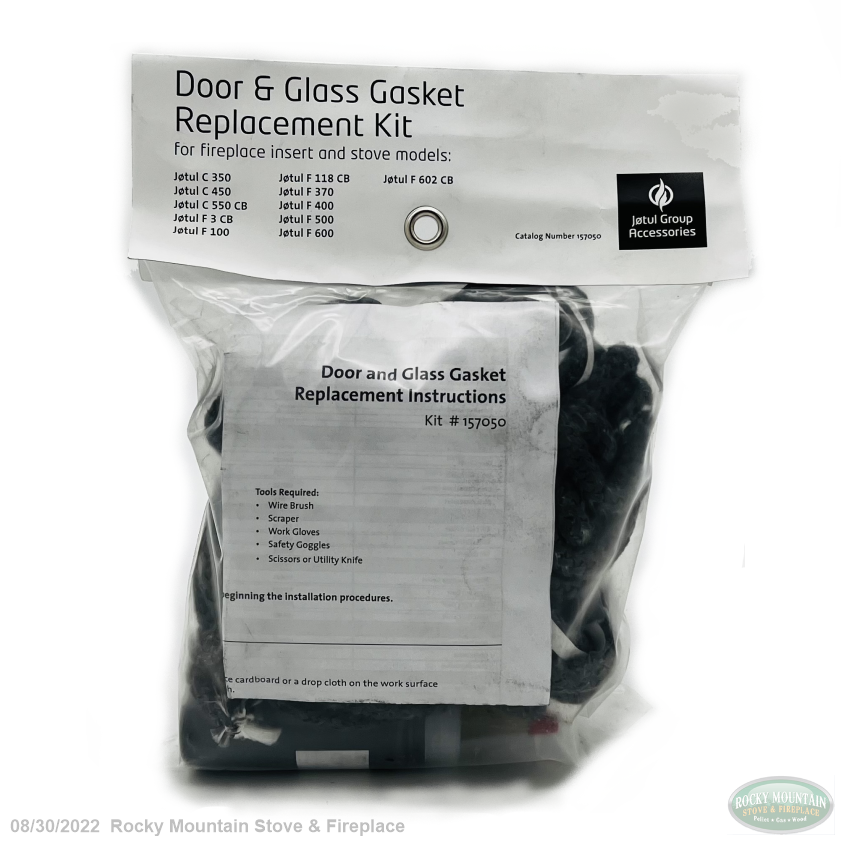

Part # 157050 Jotul Universal Gasket Kit
This Jotul Door & Glass Gasket Kit is designed for use with the following Jotul models:
- Jotul F 100 CB
- Jotul F 118 CB
- Jotul F 3 CB
- Jotul F 370
- Jotul F 400
- Jotul F 500
- Jotul F 500 V3
- Jotul F 600
- Jotul F 602 CB
- Jotul F 602 V2
- Jotul C 350 CB
- Jotul C 450 CB
- Jotul C 550 CB
Door and glass panel gaskets will harden and compress with over time. Inspect and replace if necessary. Check the door gasket for tightness. Close and latch the doors on a dollar bill and slowly try to pull the dollar bill free. If it can be easily removed then the seal is too loose. Check several spots around the door, and repeat the procedure on the ash pan door as well.

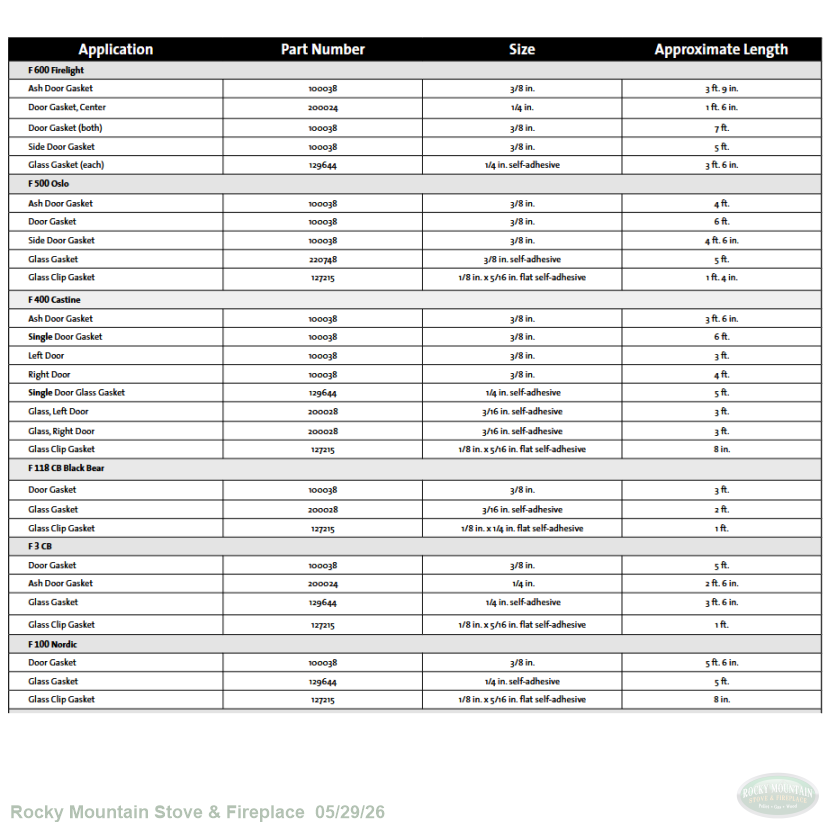

15' - 3/8" Round Gasket (100038)
7' - 1/4" Round Gasket (200024)
7' - 1/4" Self Adhesive Round Gasket (129644)
7' - 3/16" Self Adhesive Round Gasket (200028)
3' - 1/8 x5/16" Self Adhesive Flat Gasket (127215)
1 Tube of Gasket Cement
1 set of Instruction
1. Use pliers and a putty knife to remove the old gasket from the door.
2. Thoroughly clean the channel with a wire brush.
3. Apply a small bead of cement to the channel.
4. Gently press the new gasket into the cement to seat it in the channel. Close and latch the door and then reopen. Wipe any excess cement squeezed out from around the gasket.
10 Reviews Hide Reviews Show Reviews
Very happy, well packed received on time.
Was a bit pricy, probably due to it covering any model of stove. I wonder if it might have been more reasonable if I only had to buy for the model I have.
2nd time we bought this kit. 1st was 5 years ago. Perfect amount, good instructions. Great shipping.
Product was as described. The gaskets were easy to install and made a difference the stove works great again.
The seal is nice but man is it hard to latch the door now. I have to push the door shut and pry down on the handle to latch all the way. Pain the the butt. I probably would have left the old one on as it wasn't to bad if I knew. If the stove is hot I cannot shut all the way because I can't push it while latching
This is a very nice kit that worked perfectly to replace the gaskets on my wood stove. Good quality materials. The gasket glue worked fine and the gaskets fit perfectly.
Excellent product, excellent customer service. Thank you.
Super impressed with the quality of this kit. The self adhesive on some of the gaskets was amazing! And was even able to use some of the excess gasket strips to seal the door on another wood stove!
