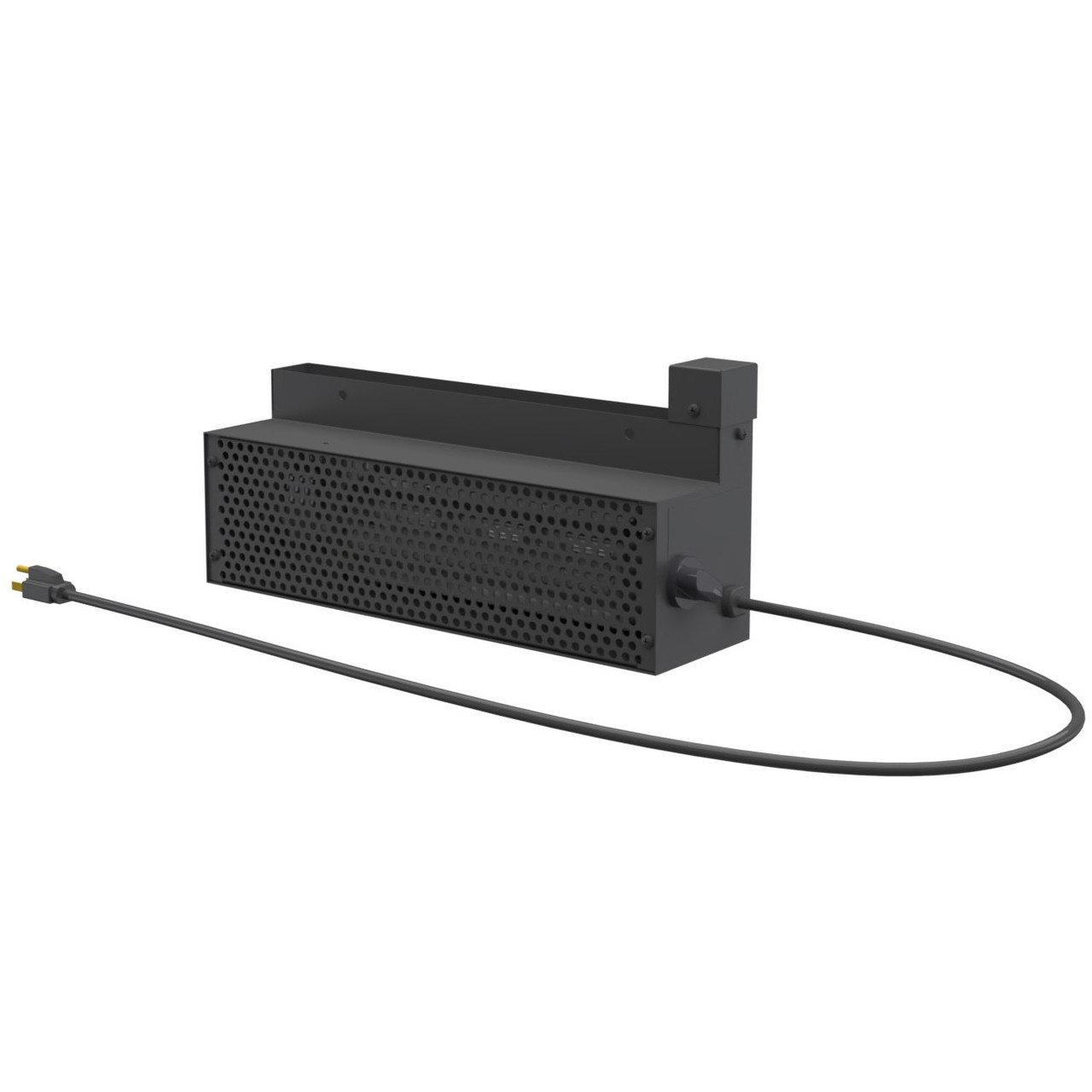

HearthStone Wood Stove Blower Kit
For use with the Following models
Heritage 8021, 8022, 8023 & 8024 Wood Burning Stoves
Castleton Wood Burning Stove
Tribute Wood Burning Stove
Mansfield 8013 Only

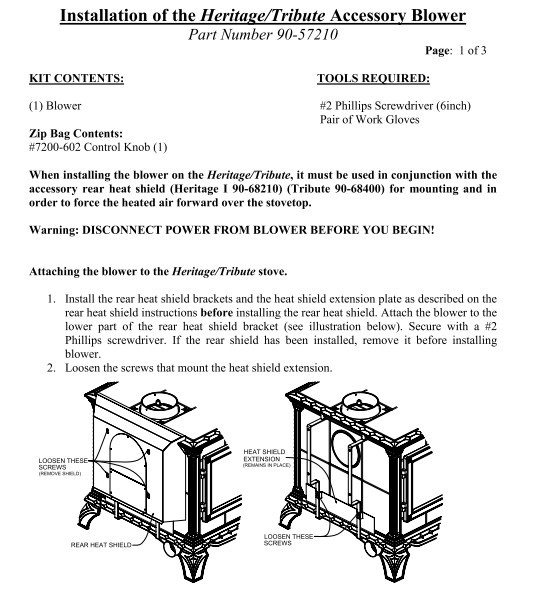

The blower for the Heritage and Tribute 8040 must be used in conjunction with the accessory rear heat shield (Heritage - PN 90-68210) (Tribute 8040 - PN 90-68400) for mounting and in order to force the heated air forward over the stove’s top.

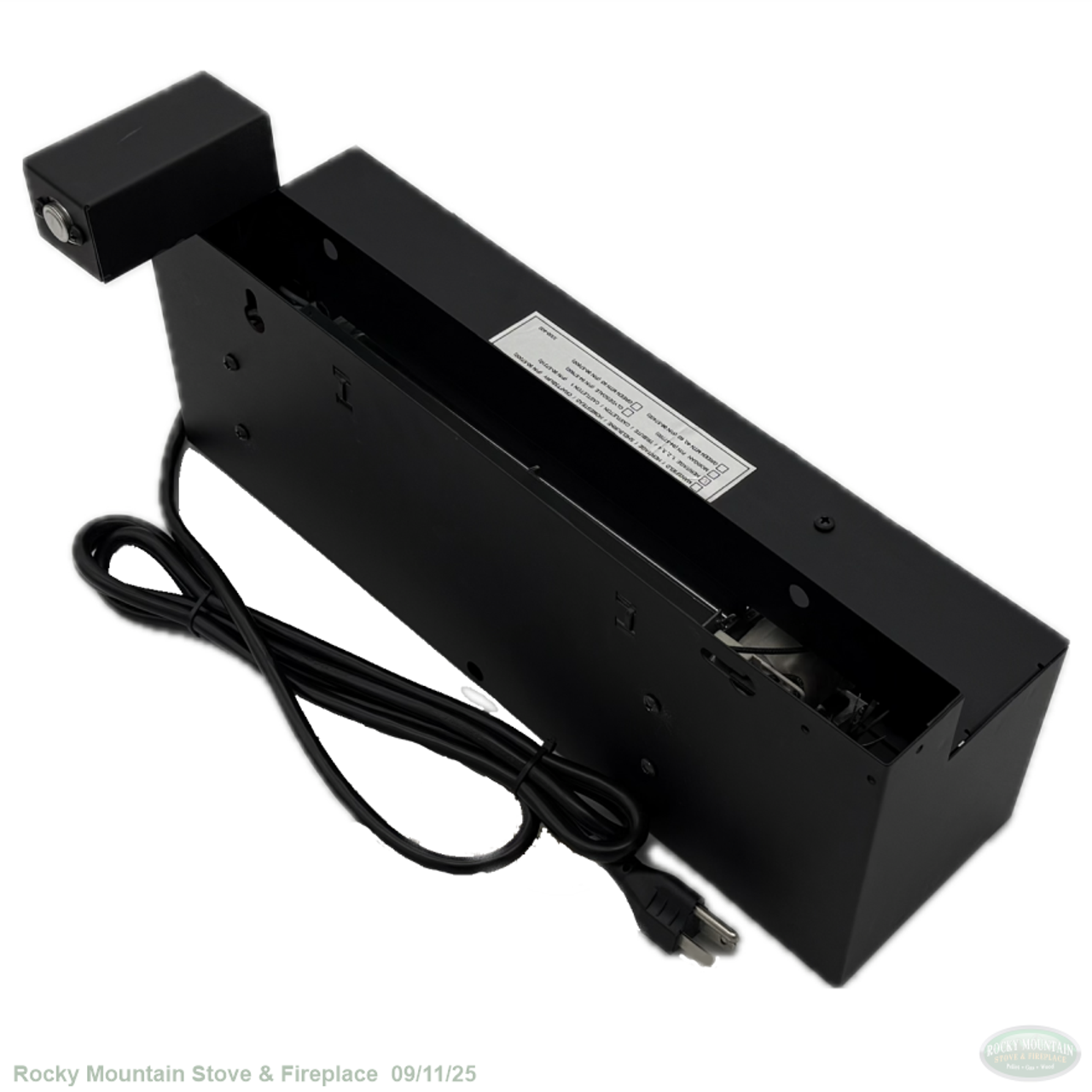

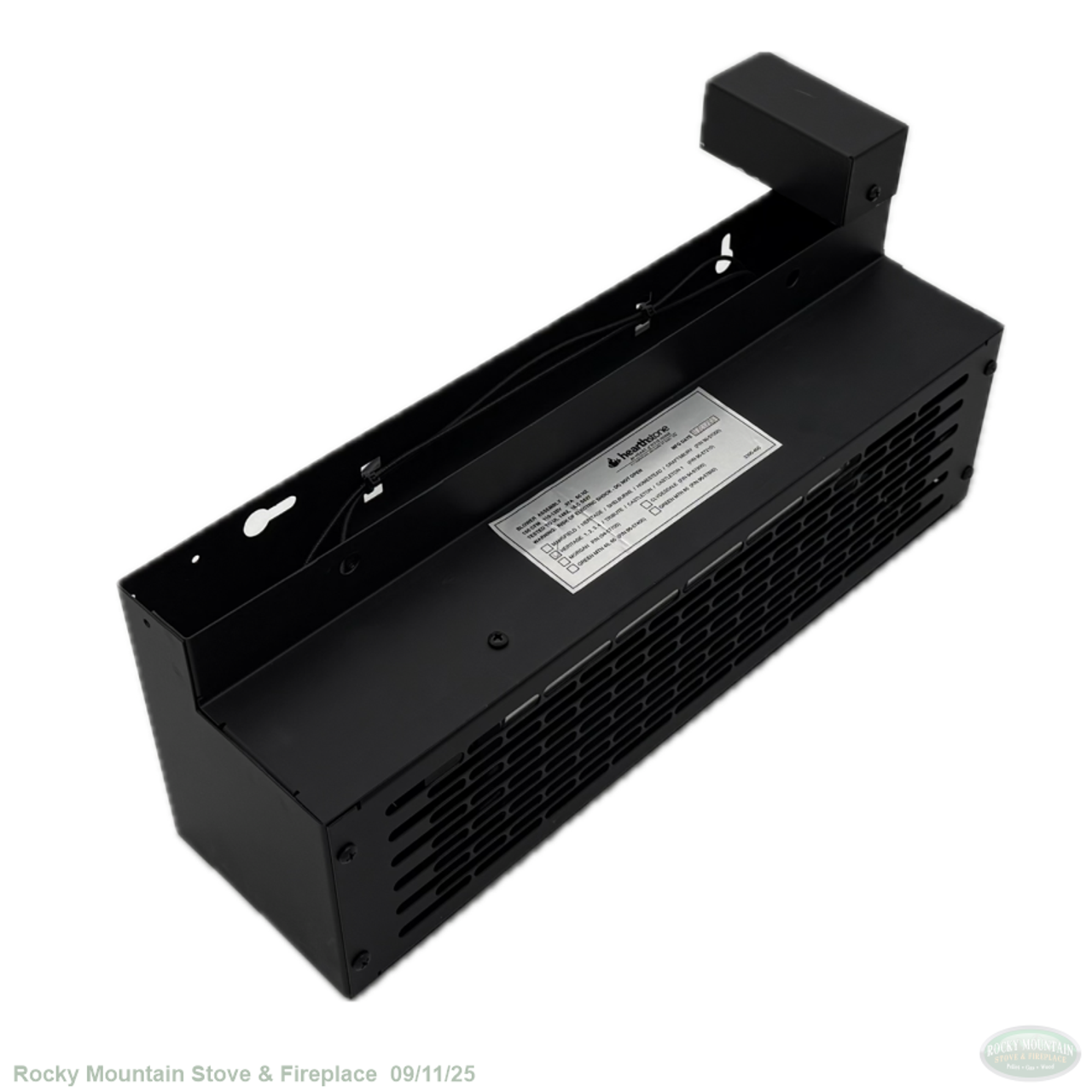

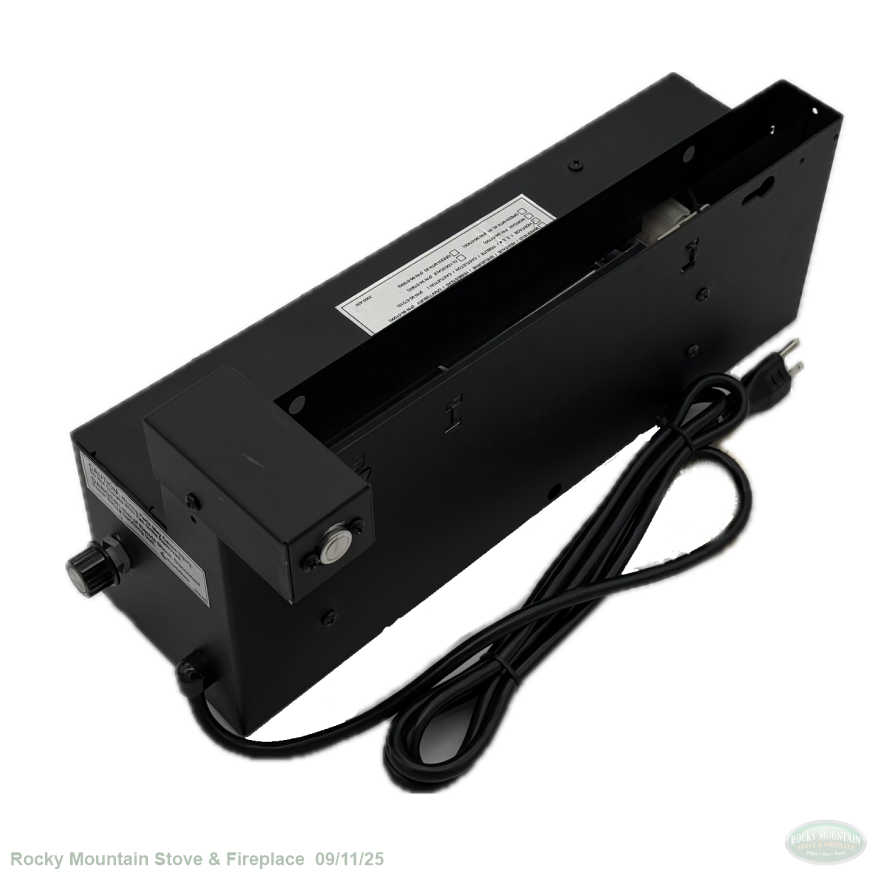

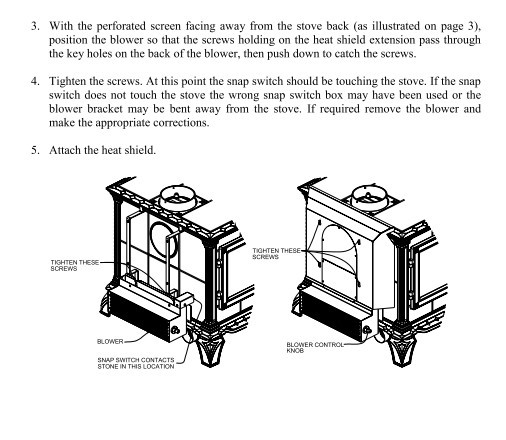

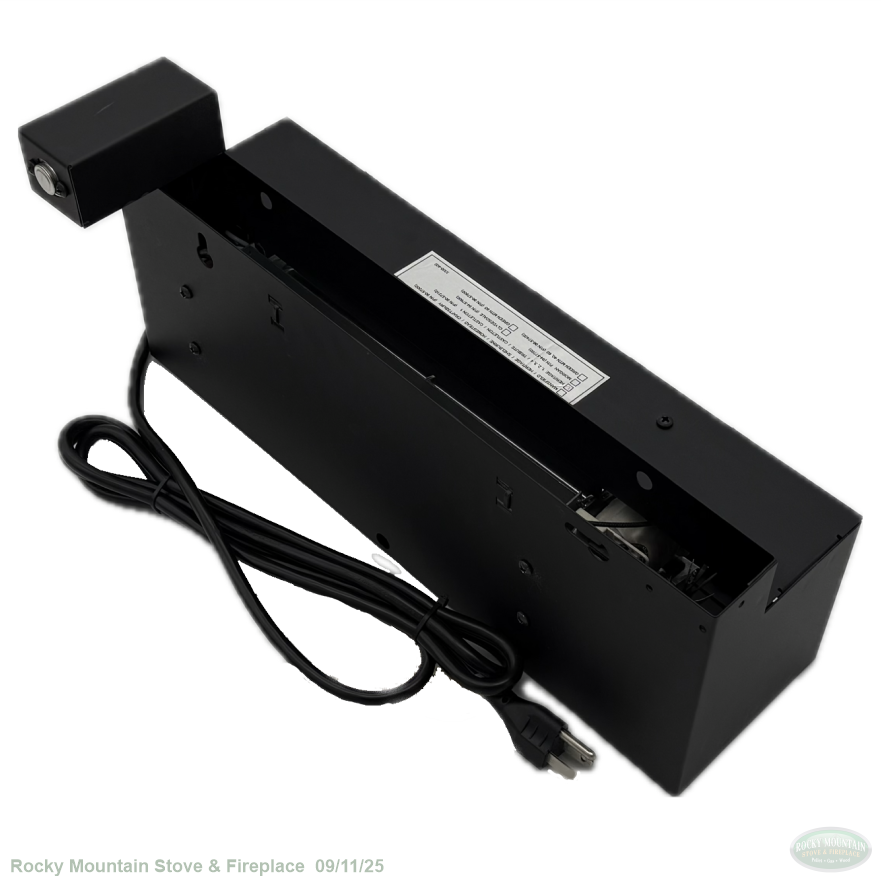

A snap switch located on the top of the blower housing activates the blower. It will take several minutes for the heat of the stove to activate the snap switch. A rheostat controls the blower fan speed. The rheostat knob is located on the right hand side of the blower housing. Turn the knob clockwise to the on position. The fan is on the highest setting when it is first turned on. By continuing to turn the knob clockwise the fan movement will be reduced until it reaches its lowest setting. If the fan does not operate at the lowest setting, the rheostat will require adjustment. Contact your dealer for rheostat adjustment. To turn the blower off, turn the knob fully counterclockwise until it clicks into the off setting.
